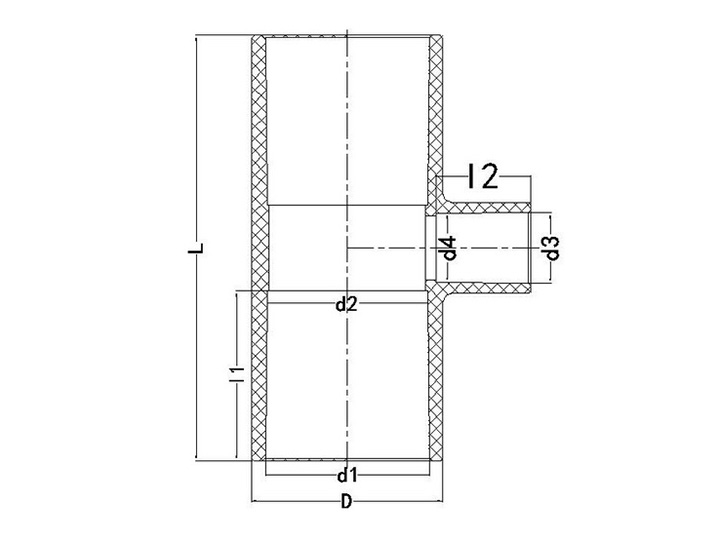

異徑三通

Nominal	Socket Type						Structural Diameter
SIZE	d1	d2	I1	d3	d4	I2	D	d	L
3/4"*1/2"	26.45	25.42	35.0	22.40	21.52	30.0	34.0	23.5	90.0
1"*1/2"	32.55	31.37	40.0	22.40	21.52	30.0	41.0	30.0	105.0
1"*3/4"	32.55	31.37	40.0	26.45	25.42	35.0	41.0	30.0	105.0
1-1/4"*/2"	38.60	37.31	44.0	22.40	21.52	30.0	47.0	36.0	118.0
1-1/4"*3/4"	38.60	37.31	44.0	26.45	25.42	35.0	47.0	36.0	118.0
1-1/4"*1"	38.60	37.31	44.0	26.45	25.42	35.0	47.0	36.0	118.0
1-1/2"*1/2"	48.70	47.21	55.0	22.40	21.52	30.0	58.0	45.5	146.0
1-1/2"*3/4"	48.70	47.21	55.0	26.45	25.42	35.0	58.0	45.5	146.0
1-1/2"*1"	48.70	47.21	55.0	32.55	31.37	40.0	58.0	45.5	146.0
1-1/2"*1-1/4"	48.70	47.21	55.0	38.60	37.31	44.0	58.0	45.5	146.0
2"*1/2"	60.80	59.10	63.0	22.40	21.52	30.0	70.0	57.0	156.0
2"*3/4"	60.80	59.10	63.0	26.45	25.42	35.0	70.0	57.0	156.0
2"*1"	60.80	59.10	63.0	32.55	31.37	40.0	70.0	57.0	156.0
2"*1-1/4"	60.80	59.10	63.0	38.60	37.31	44.0	70.0	57.0	156.0
2"*1-1/2"	60.80	59.10	63.0	48.70	47.21	55.0	70.0	57.0	156.0
2-1/2"*1-1/2"	76.60	75.30	64.0	48.70	47.21	55.0	88.0	73.8	183.0
2-1/2"*2"	76.60	75.30	64.0	60.80	59.10	63.0	88.0	73.80	183.0
3"*1-1/2"	89.60	88.29	64.0	48.70	47.21	55.0	102.0	86.8	198.0
3"*2"	89.60	88.29	64.0	60.80	59.10	63.0	102.0	86.8	198.0
3"*2-1/2"	89.60	88.29	64.0	76.60	75.30	64.0	102.0	86.8	198.0
4"*2"	114.70	113.20	84.0	60.80	59.10	63.0	129.4	110.0	253.0
4"*2-1/2"	114.70	113.20	84.0	76.60	75.30	64.0	129.40	110.0	253.0
4"*3"	114.70	113.20	84.0	89.60	88.29	64.0	129.4	110.0	253.0
